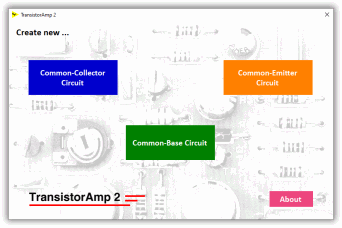

Download TransistorAmp 2 software for the design of transistor amplifiers

Here you can download TransistorAmp 2 software. This software is freeware and may be used commercially and privately for free.

Latest version: 2.0.3, created 2023-05-12.

Filename: Setup_TransistorAmp_2_0_3_EN.msi, filesize: 2155 KB

Download Counter TransistorAmp 2: 4390

Download Counter for TransistorAmp 1.1 (32 Bit): 42949
Download Counter for TransistorAmp 1.1 (64 Bit): 1525
Download Counter for TransistorAmp 1.0: 932

History of changes

Version 1.0.1 - 1.0.3: bug fixes
Version 1.0.4: Germanium transistors AC125, AC126, AC127, AC128, AC151, AC187K and AC188K included
Version 1.1: common-emitter circuit: new option "simplest circuit", input of gain no longer in dB, emitter impedance changed from serial to parallel circuit
Version 1.1.1: bug fix in calculation of operation point. With some transistor types, e.g. BF517, the bug caused faulty results
Version 1.1.2: common-base circuit: results extended by Z_in
Version 1.1.3: common-emitter circuit: bug fix in calculation of operation point for output, input dialogs: transistor type is converted to upper case
Version 1.1.4: faulty model of BFG135A replaced by bug fixed model of BFG135
Version 1.1.5: lots of new transistors added
Version 1.1.5.1: 64-bit edition
Version 2.0: New dialog-based user interface. Spice call-interface added
Version 2.0.1: bug fix in Spice netlist for R5 = 0
Version 2.0.2: BFU730F included
Version 2.0.3: Code signing added
